Reliable Removable Wing Halves

by tomsun | November 9, 2013 | (6) Posted in Tips

The Bixler, AXN and lots other models come with two wing halves that are held in place by friction. You might be able to get away with that: the wing spar helps somewhat and the forces on the wing apparently don't act very strongly in an outward-pulling manner, except on bumpy landings - but why take the risk? You can glue the wings, but then the Bixler will barely fit in a medium sized car...

I've had my Bixler stationary up until this Autumn and a few strips of clear tape was all I used initially. That approach didn't really feel secure enough, but at least I didn't have any accidents during those first 30-40 flights.

The past month I've had it with me to various locations, by car, by ferry, by feet in a cardboard box on wheels... The tape method wasn't really cutting it anymore, so I opted for perhaps my favorite build material of choice after hot glue and zip ties:

Velcro!

How do you secure your wing halves?

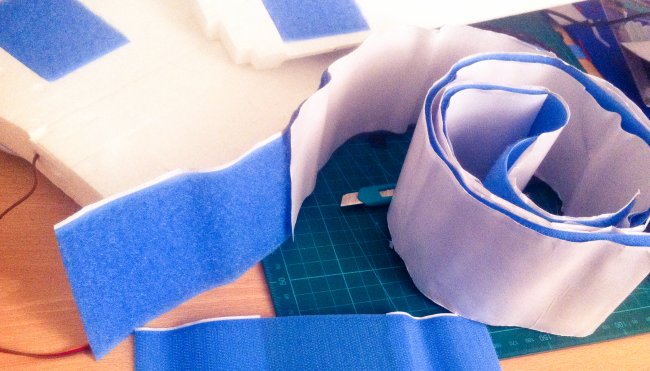

I used the blue 75mm sticky-back velcro variant from Hobby King (on recommendation by Xjet originally).

Good stuff! But why is this harsh blue the only color option?!

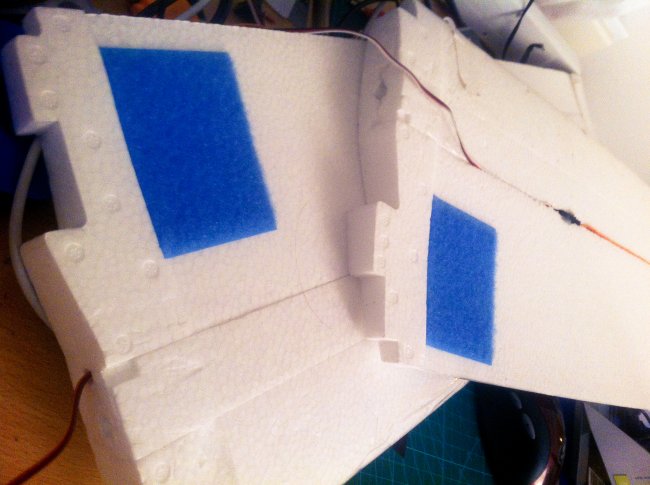

A generous piece of velcro on each winghalf.

All four sides are hot-glued for added strength. Otherwise, they might come off when the wing is taken apart, since the mating piece is large too and hence applies quite a bit of downward directed force when you pull on it.

Alternatively, give the above pieces considerably larger surface area than the mating piece.

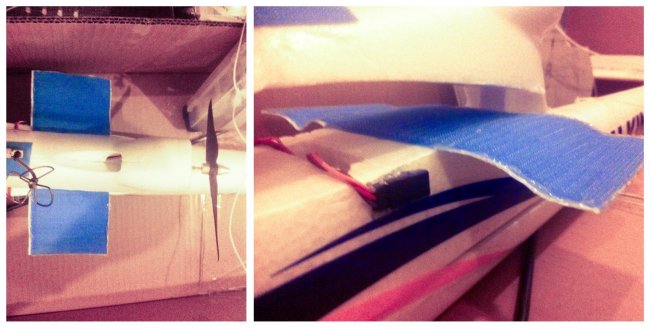

This third larger piece goes onto the fuselage and connects with both wings.

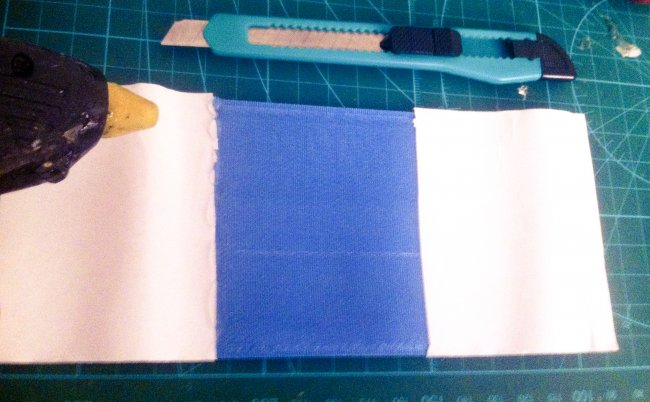

I carefully removed the protective paper from the middle section with a knife and hot-glued the remaining pieces of paper from all sides, since no stickyness is desired there.

Again: you could probably get away with this piece being a bit smaller: to have it sticking out 2 cm or so is probably plenty. I went for maybe 5 cm, totally overkill.



The large piece of velcro stuck to the fuselage just behind the servo leads.

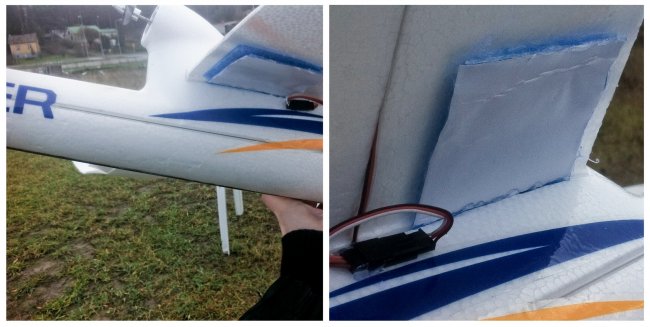

The receiving ends of the aileron servo y-lead are glued to each side of the fuselage, to avoid confusion when plugging in the servos.



Wings mounted, ready to fly!

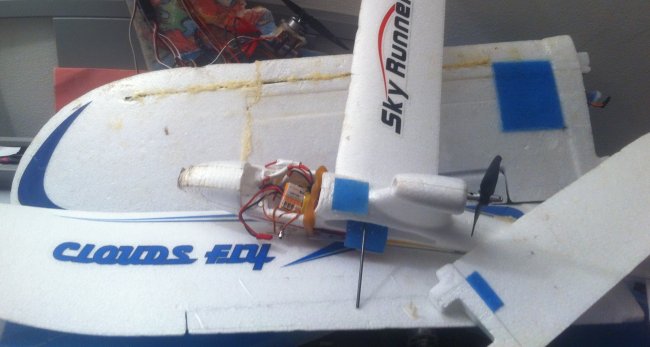

I've used the same velcro approach with no issues on my first larger model, the AXN a couple of years ago and later on the tiny Nine Eagles Sky Runner.



The Bixler 2 comes with wing bolts, but Jon has opted for velcro too: less hassle and more space inside the fuselage. This approach with a long narrow velcro strip seems to work fine too!
