Simple cessna 172 swappable (Cloud Dancer)

by 81zapper | June 19, 2015 | (12) Posted in Projects

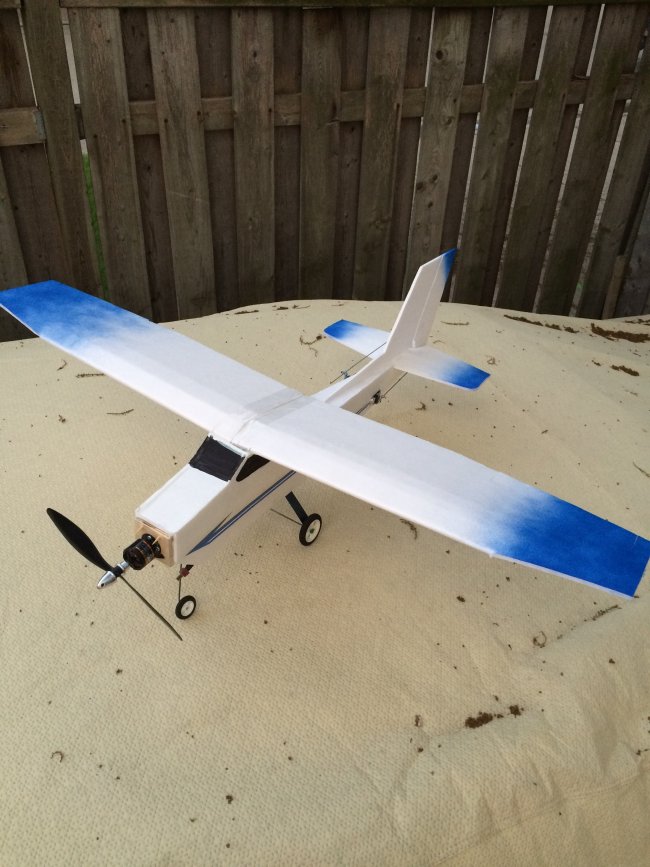

This is a quick Article about a 172 stlye Swappable Cessna that I built. I have named it Cloud Dancer for when it goes into mass production :)

It is a very simple build with only dtf. There are no rounded or curved parts to worry about just foam board all straight cuts and folds. No poster board to deal with as I just can't seem to get a a nice clean fit with any of my builds with it. The plane  flies great for a newbie like myself ( I've been doing this for 3 summers now , is that still a newbie?) . I have made a couple now and they both fly well. I have  also got an area on the  plans for flaps but have yet to try that

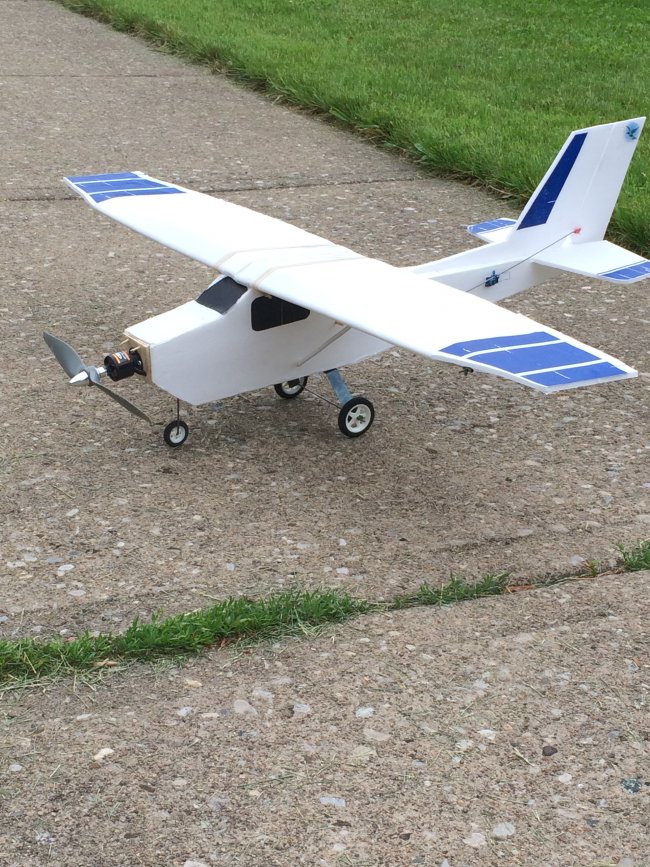

 Simple straight forward fuse  optional rudder shown. I used this tail on one plane with no rudder control for just bank and yank flying

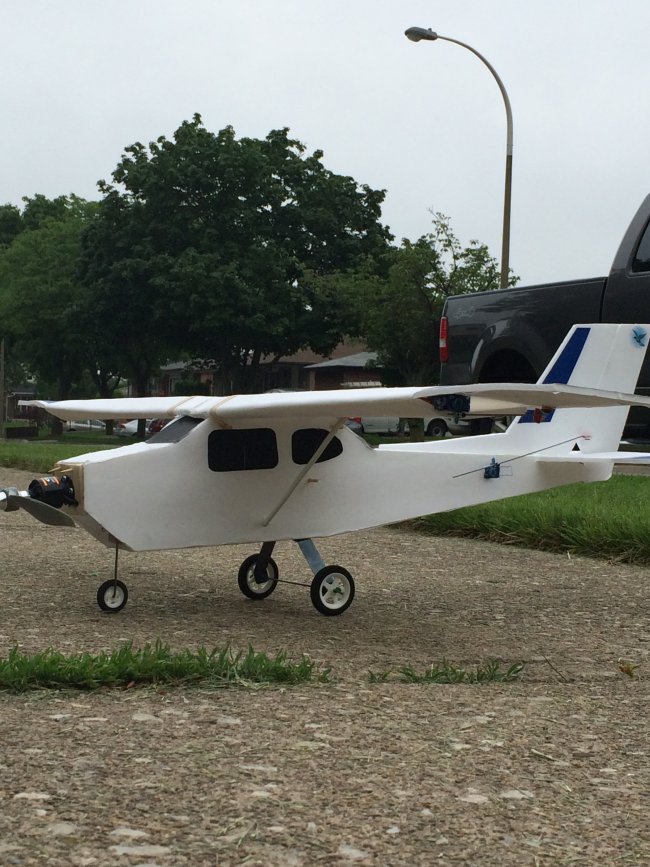

 Ready for some dancing



TEST FLIGHT

 oh well back to the drawing board

The plane above is the one in the oops video    wing is now glued to fuse for added strength

 This is a better flight



Plans are available below for the flite test community.They are also on Ebay if you really really need to donate :)

Cessna 172 Wing tiled

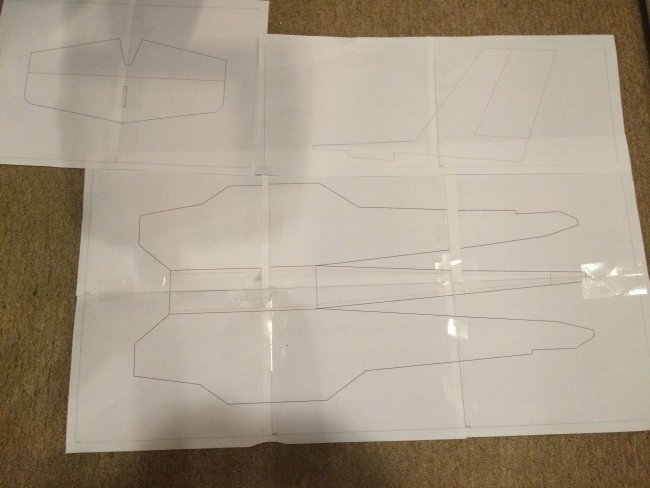

Cessna 172 fuse tiled

Specs.

emax 2212  980 kv motor

9x6 prop

20 amp esc

1300 mah battery

9 gr servo

gift card  control arms





 You can also see other ideas of mine on my Bentech RC facebook page or RC Canuck youtube Channel for flight videos

Currently working on a web page with my designs plus more to come  go to  http://www3.sympatico.ca/pd.bender
