Cutting dollar tree foam with high pressure water

by Pumpster | March 19, 2014 | (9) Posted in Tips

Good afternoon from (I hope) thawing Michigan! I wanted to put together and a quick article on how I have been cutting out the FT planes for myself and club members and anyone else who wants to give or hobby a try. I wanted a good way to cut foam planes out consistently and quickly so people that wanted to get into the hobby could have fun and see what this is all about, the good and the bad.. With several years (just about 30) of building and flying planes of all shapes and sizes, I’ve had my share of the “bad”. After the loss of a few giant scales; one being a Hosteller 33% Edge scratch build; I wanted a hassle free plane to place in front of a potential flier and try it out. I found the Versa Wing to be that plane for the guy that wants to try RC flying out.

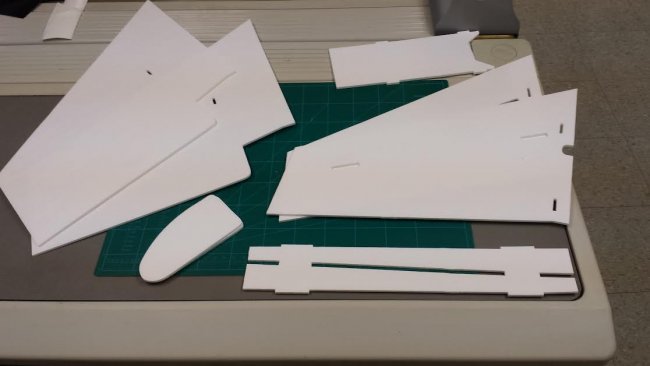

I’m a robot programmer; one part of my job is to program robots to cut out prototype parts for the auto industry in and wide range of materials. One day I was curious to see what would happen if I cut dollar tree foam with the water jet.. I knew at a water pressure of 50,000PSI it was going to cut just fine, but I wanted to see how wet the paper would get. It all worked out very well; the water passes right through the paper and does not get wet. The other thing that I liked was the cut was strait and clean. So I sat down with Sketchup and designed a simple fixture to place the foam sheets on and started programming with the consent of my boss which wanted me to build a plane for him lol



I’ve cut a few for club members and others folks that want to fly. I’m also interested in cutting out some simple planes for my local schools to show parents, kids, and staff about the hobby, similar to what flitetest did in one of their episodes. Maybe something that can be powered by rubber band at first then made RC later so the student has a good understanding and pride about something they built.. Like Josh say’s “making memories”





Todd

 AKA “pumpster”







COMMENTS

rockets4kids on April 2, 2014
Have you tried increasing the speed to see just how fast you can cut through the foam?


Log In to reply
Pumpster on April 2, 2014
I can cut at 2000mm per second without any issues cutting the foam. I haven't had a need to move that fast but when I get a chance I will speed it up to improve cycle time.
Log In to reply
Balu on April 2, 2014
Now that's an interesting method I would not have thought of. Laser has the problem of heating the foam so it results in undercuts. Cutting with a blade makes the blade dull quite fast, also you need to make some cuts longer because of the angled blade. Using a router might give wider cuts than required?

This gives straight cuts and doesn't use a toll that needs to be replaced. Love the idea.

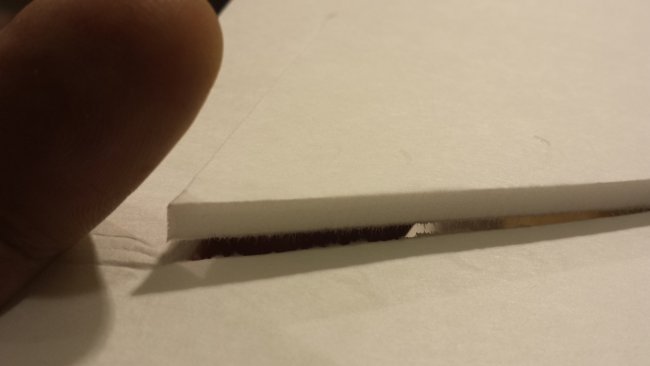

It still looks a little frayed / wet at the bottom though?

What is the material the foamboard is laying on?
Log In to reply
Pumpster on April 2, 2014
"Using a router might give wider cuts than required?"
- I would this a router give a wider cut but you can get small cutters that would work well..

"It still looks a little frayed / wet at the bottom though?"
- Their is a little "fray" on the bottom but that's because the cutting tip did need to be replace when I cut those... A light touch some sandpaper cleans that right up...

"What is the material the foamboard is laying on?"

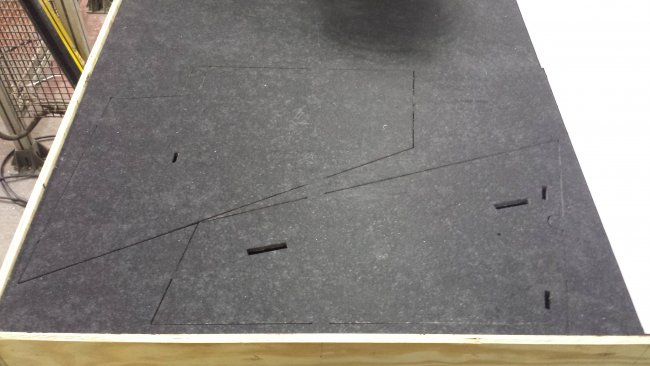

- It's a raw fiberboard material that's formed in high temp press mold.
