Catalina Scratch Build

by Alex kasty | January 29, 2014 | (6) Posted in Projects

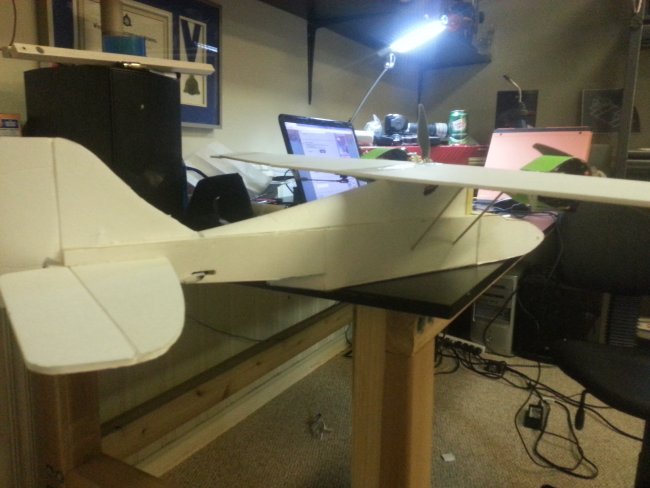

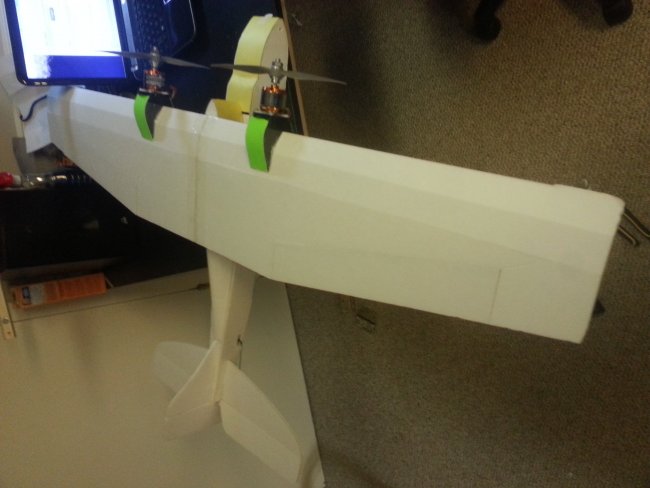

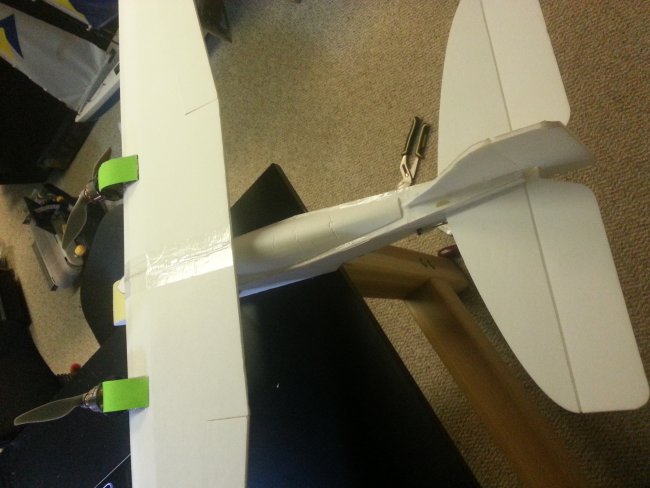

this is my first attempt at my own design of a scratch built plane. i chose to model the catalina for this project as it is a nice looking plane and i wanted to make a duel motor design. i was not happy with the ft cruzer and the amount of power pod problems that i had. i make most my scratch builds without power pods as i fly them into the ground anyway. so i started in auto cad and figured out the aspect ratio of the plane then tried to mimic the air foil from looking at NACA air foils. i messed up a few times with the cad and was going to encorperate landing gear but messed up the cad.

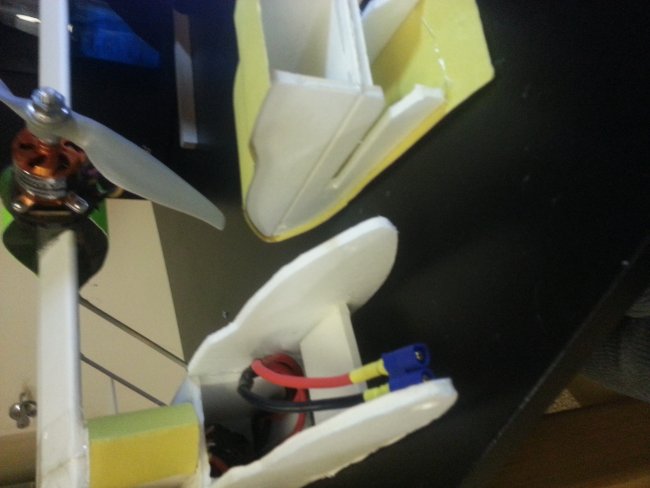

after coming up with somthing i was happy with i laser cut out the parts at school. then assembled them and moddifed some things here and there. i liked the nose removable so that i can get at the battery and rest of electronics.

will be posting a video soon.

thanks

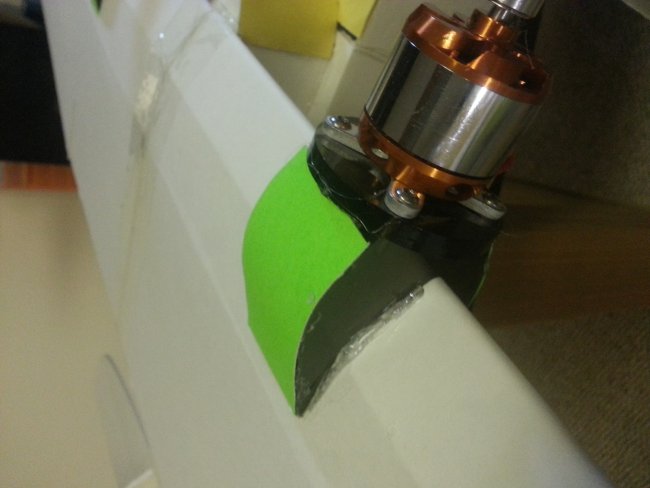

 Motor mounts i made from 1/4 polycarb and then ran the wires inside. im using turnigy 35/34 1450kv motors with the 2200 3s and spinning a 8x4 prop. each motor is pulling about 25 amps.

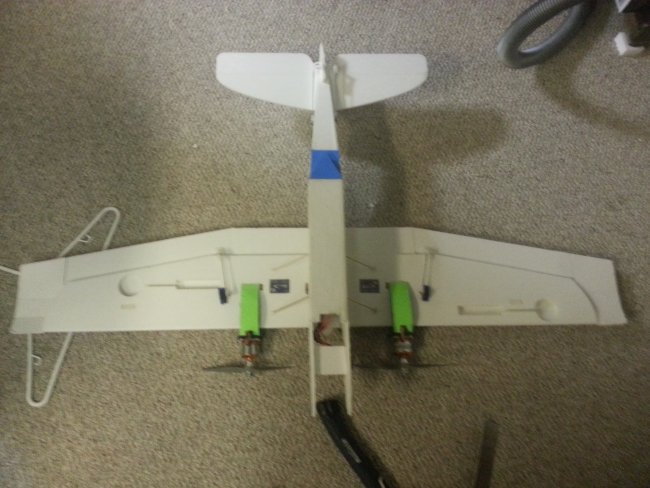

flush mounted esc.

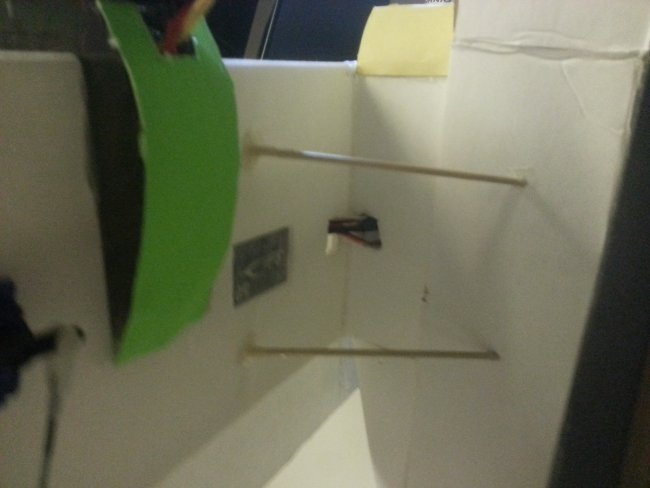

wooden supports
