Camera button switch

by Doctor3 | August 9, 2012 | (10) Posted in Projects

I really wanted to take high definition photo's and film using my multi rotor ( the H- copter ) so i decided to swap the FPV gear for a digital camera.

I mounted the camera easily ( and no it isnt anti vibration mounted but it seems OK for now , but if you have any ideas for mounts please post ), but set out to make a button press

My solution is very simple (argueably crude) .

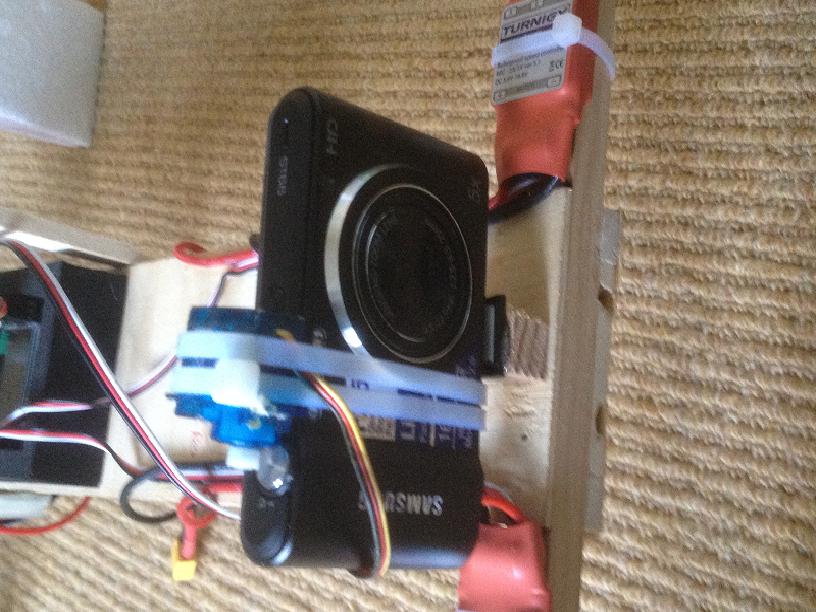

The servo arm was dramatically shortened in order to provide a higher torque "push" . i could have used a larger servo but in order to access the power button a smaller (3.7g) servo was used.

The servo is plugged into the gear/ aux plug , which means no self levelling though (kk2 board used). By adjusting the Travel Adj settings it ensures the shortened servo arms presses the correct amount.

I used tie-wraps as it allows for super easy adjustment before final tightening.



The results were very pleasing :)

Kit used -

3.7gram servo

http://www.hobbyking.com/hobbyking/store/__5459__Hobby_King_3_7g_4kg_10sec_Micro_Servo.html

10cm servo extension wire

http://www.hobbyking.com/hobbyking/store/__9707__10CM_Servo_Lead_Futaba_32AWG_Ultra_Light_10pcs_set_.html

Samsung St 66

http://www.amazon.co.uk/gp/product/B007JT02S0/ref=s9_simh_gw_p23_d0_i2?pf_rd_m=A3P5ROKL5A1OLE&pf_rd_s=center-2&pf_rd_r=1TW1882B4N6A1VPFTJSY&pf_rd_t=101&pf_rd_p=317828027&pf_rd_i=468294

Micro Sd card 8GB

http://www.amazon.co.uk/SanDisk-8GB-microSDHC-Memory-Card/dp/B002NTW99G/ref=sr_1_1?s=electronics&ie=UTF8&qid=1344536020&sr=1-1

Camera screw

http://www.amazon.co.uk/Kaavie-Adapter-Trigger-Microphone-Digital/dp/B004KIVTQ2/ref=pd_sim_ce_1

Total cost around £85 (camera being 70 - nought from Jessops )

or $130 .  (mount costing £7 or $11)


Thanks from Eddie - Doctor3

please rate :)

COMMENTS

casehatter on August 13, 2012
Good job and great pics. Have fun and show us more man..
Log In to reply
Doctor3 on August 16, 2012
thanks a lot ! :)
Log In to reply
Twisterr1000 on August 19, 2012
As you are doing the price in £ I guess you live in the U.K. ! anyway, do you know anywhere to get cheap fpv stuff or shall I just get it from hobbyking internatonial warehouse because I asked them if they were going to get any fpv stuff in the U.K. warehouse and they said no. :(
Log In to reply
Doctor3 on August 19, 2012
yepp i live in the UK ! woo :)
Urm yepp seeing as i dont feel inclined to be hobbyking biased anymore i found the best places was ebay and amazon.

Stand -

http://www.amazon.co.uk/gp/product/B004LDURVE/ref=oh_details_o03_s00_i00

Camera -

http://www.amazon.co.uk/gp/product/B001GQ7QZY/ref=oh_details_o00_s00_i00

Screen -

http://www.amazon.co.uk/gp/product/B005Q6JNV0/ref=oh_details_o05_s00_i00

and various 3 cell lipos ( i would just go for cheap ones as no real current draw)

however the transmitter is up to you really. if you've got a 2.4ghz contoller then dont get a 2.4ghz fpv gear. ebay sells cheap and powerful stuff - depends on your price range. 900mhz , 1.2 ghz are way cheaper and more powerful longer range etc. but are "slightly " illegal
Log In to reply
Jeriah on August 10, 2012
cool way to take pictures!
Log In to reply
Doctor3 on August 11, 2012
Thanks ! :)
Log In to reply
FoamingInMI on August 10, 2012
Simple but effective. I used the same technique years ago on my first AP plane which was a 3 channel. Had the shutter servo on the rudder stick & just flicked my thumb to take a (usually bad) pic.
Log In to reply
mena142 on September 19, 2012
Yup :P...quite a crude implementation, but it works without having to modify the camera or anything. It'd be cool if you could also post some of the picture you've taken!
Log In to reply
