Roll Axis Gimbal

by apnewton | February 19, 2016 | (7) Posted in How To

Here's how to make a very simple one axis camera stabilizing gimbal.

The resulting footage is very much like the MotoGP gyro cam, with the horizon staying level and the bike (or plane) moving under the camera.

I'm using a 808 #16 keyring camera for my onboard footage, but this could work with a Mobius or Run Cam.

The base is heat-bent PVC plastic, the servo is a digital metal gear Corona DS939MG and the control board is a Naze 32.

The camera lens pivots in a hole in the PVC mount at the front and the camera is directly connected to the servo by a PVC bracket and small screw. The servo is mounted at the required height on soft foam using double sided tape.

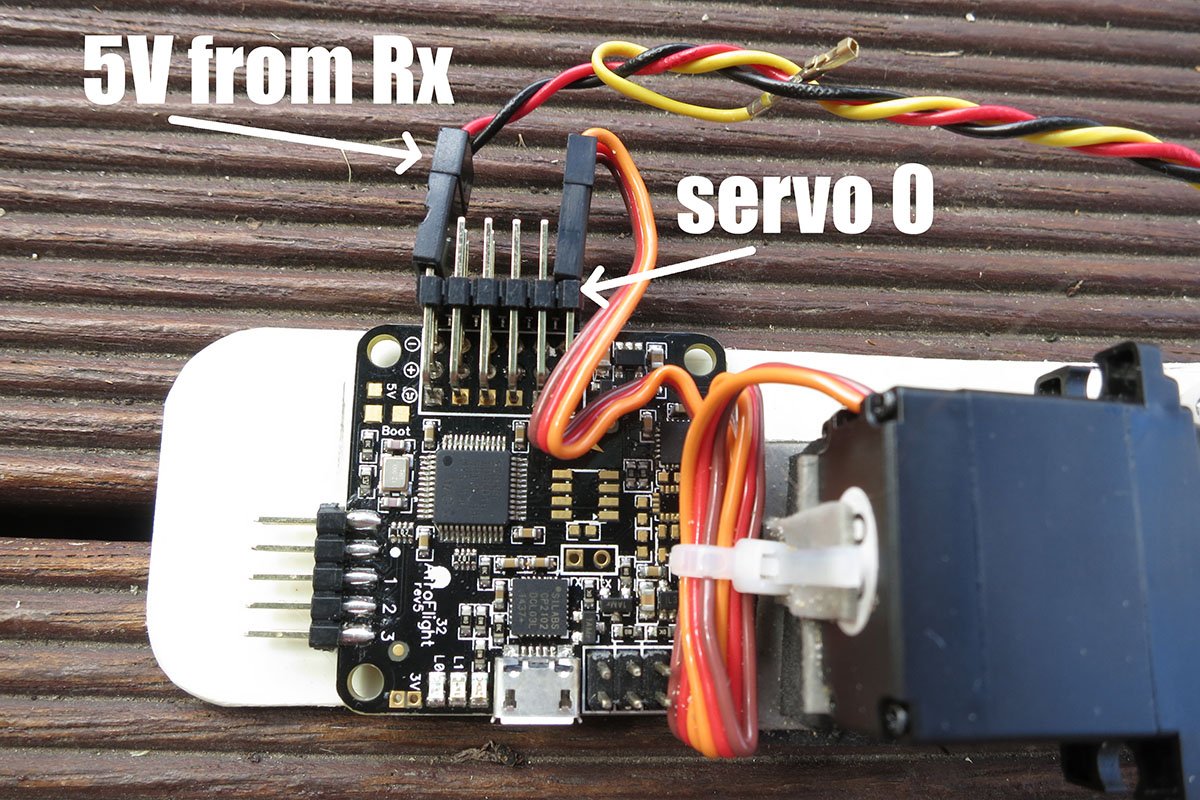

This is designed as a stand alone camera mount and all it requires for power is 5V plugged into one of the unused servo positions. I run a servo lead from a spare channel on the receiver with the signal wire removed. Don't plug 12V in by mistake, bad smells will come from the Naze 32.

The camera servo is plugged into "Servo 0" pins. This is usually for the pitch servo, but I have the board turned 90 degrees to allow access to the mini USB port.

The Naze 32 is configured in Cleanflight as a gimbal. Watch the video below to see what selections are required. (Thanks to Painless 360 on YouTube for showing me how it's done)

Here are some onboard stills from my scratch built Tigermoth



Build overview and configuration instructions



Onboard footage



I usually prefer unstabilized views that show the motion of the plane but this one axis stabilization is quite interesting.

Give it a go, it's an easy build. Keep it as light as possible so you can slap the mount on any plane. Mine weighs 58g all up.

Andrew Newton

Newton Airlines blog (Plans) - http://newtonairlines.blogspot.com.au
Website - http://anewton.net

COMMENTS

flying panda on February 22, 2016
Wow how clever and simple
Log In to reply
mad_milchmann on February 22, 2016
If you mount that on a carbon fivbre tube and attach it to the rear of the plane so taht you can see the whole plane in the vide, might look very cool.

would just need quite a lot of counterweight in the nose then.
Log In to reply
apnewton on February 22, 2016
I tried mounting it up on the vertical stab and needed a second battery in the nose for balance, but the footage is very weird but good.
Log In to reply
danallen82 on February 22, 2016
I love the simplicity! This really helps the viewer, since roll is unnatural motion. I see this being even more useful on a flying wing, which rolls nonstop.
Log In to reply
apnewton on February 22, 2016
Yes I'll try it on my 1m wing soon
Log In to reply
JUSS10 on February 23, 2016
This is really cool! how does it do with loops and rolls? Does it freak out?
Log In to reply
apnewton on February 23, 2016
I goes level...level...flip...level...level
Log In to reply
Bayboos on February 20, 2016
Brilliant, as always.
Log In to reply
apnewton on February 22, 2016
Thanks Bayboos, it's a unique view
Log In to reply
HilldaFlyer on February 27, 2016
Simple, elegant, clever - your ideas are great... keep it up.
Log In to reply
apnewton on March 1, 2016
Many thanks, hope the ideas keep coming.
Log In to reply
